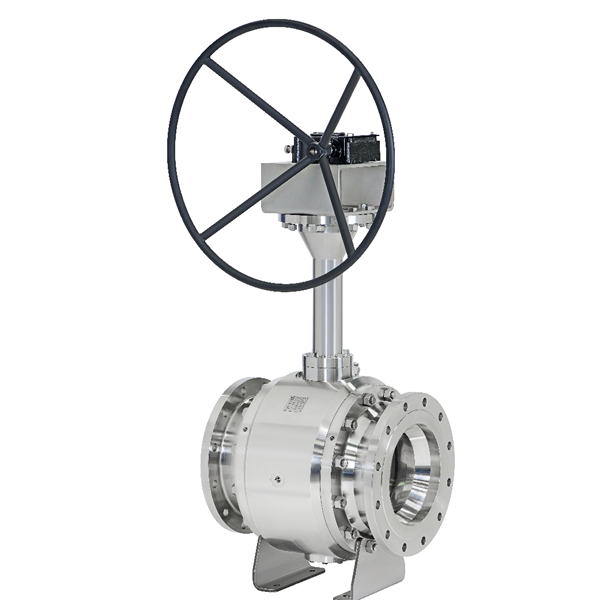

High Pressure Cryogenic Class 2500, full differential pressure for sizes up to and including 2″ (DN50), differential pressure of up to 103 bar (1494 psi) for sizes 2½” (DN65) and above with hybrid seats. Pressure containing parts are in compliance with ASME B16.34, for wall thickness, design type-tested for burst testing of four times the pressure rating for 5 minutes. A one-size-up stem made of high tensile material complies with ASME B16.34 and API 6D for drive train requirements.

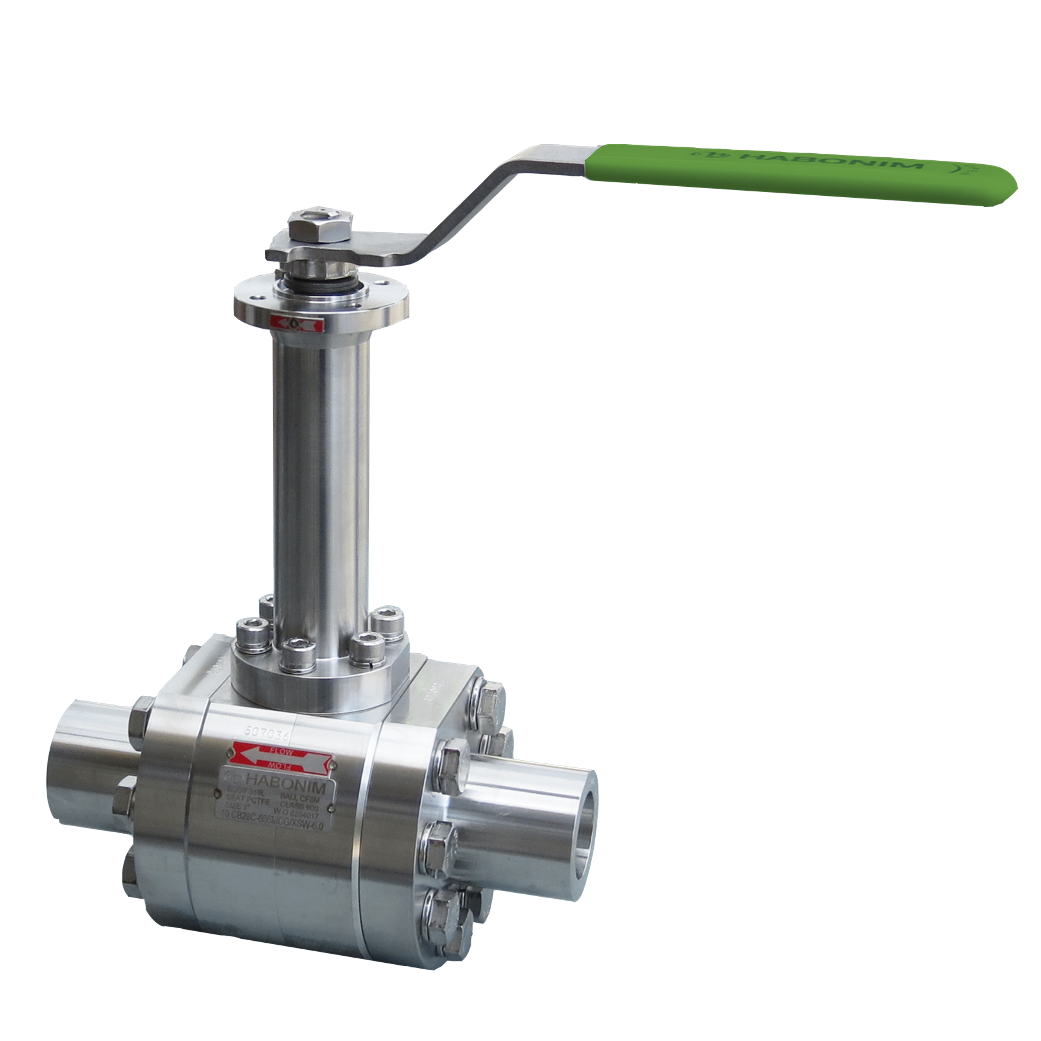

Solid one-piece high torque durable stem. Tight stem-to-ball directional engagement, ensures relief hole alignment. Strict materials and manufacturing tolerances control. Narrow space between extension ID and stem OD allows the stem seal to remain at an ambient temperature. Relief hole on the upstream sphere of the ball to prevent pressure build-up in the cavity. Up to 45° from vertical for 12” bonnet (per BS6364 guidelines). Up to 15° from vertical 6” bonnet (not BS6364 compliant).

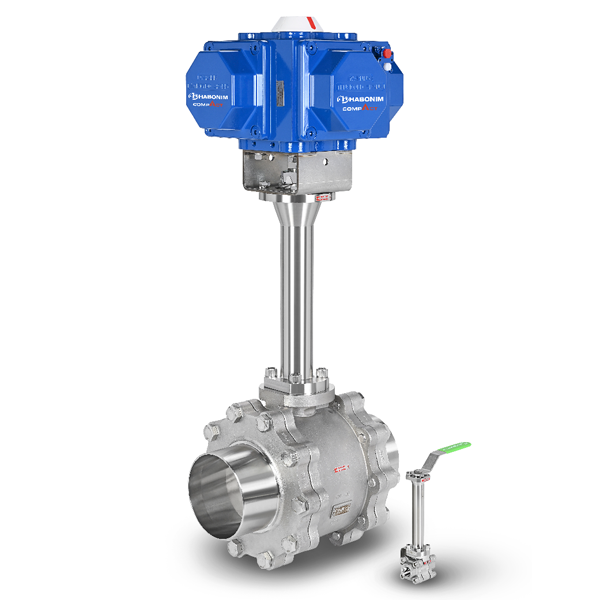

3-piece robust, forged valve • Double block & bleed. Blowout-proof robust stem design. Bi-directional as standard. API 6D certified (API monogram #6D-1278). Fire safe designed to API 6FA, API 607, ISO 10497. Comply with NACE MR0175/ISO 15156. Corrosion resistant low friction bearings. Double Piston Effect or Single Piston Effect seat design. Mixed SPE and DPE seats design also available. Integral top-works direct mounting pad to ISO 5211. 6” and larger valves are equipped with lifting lugs.

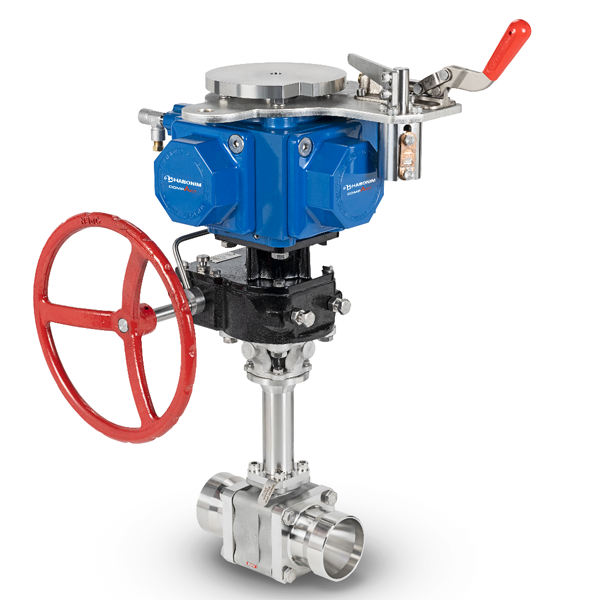

Featuring new capabilities and technical improvements, Habonim Fire Block Valves (FBV) perform in the most demanding applications including Cryogenic LNG. Habonim’s Emergency Shut-Down (ESD) package is certified to work in a SIL3 loop, providing reliable and rapid closure of a gas line in the case of system malfunction. At the core of the ESD package is Habonim’s unique four-piston COMPACT™ actuator, with a stroke time that closes an 8” line in less than 1 second.

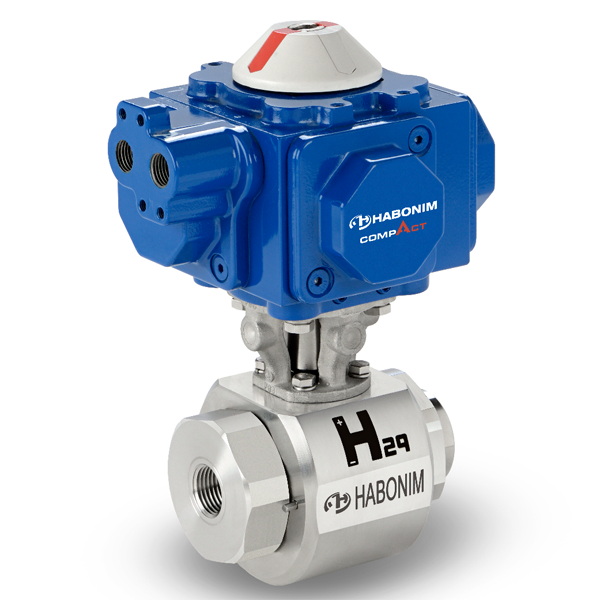

1034 bar (15,000 psi). 3 pieces. High Pressure Cone & Thread / Threaded / Weld end connections. Double body sealing. High cycle fugitive emission fire-safe HermetiX stem seal. Actuator ready with ISO plate.

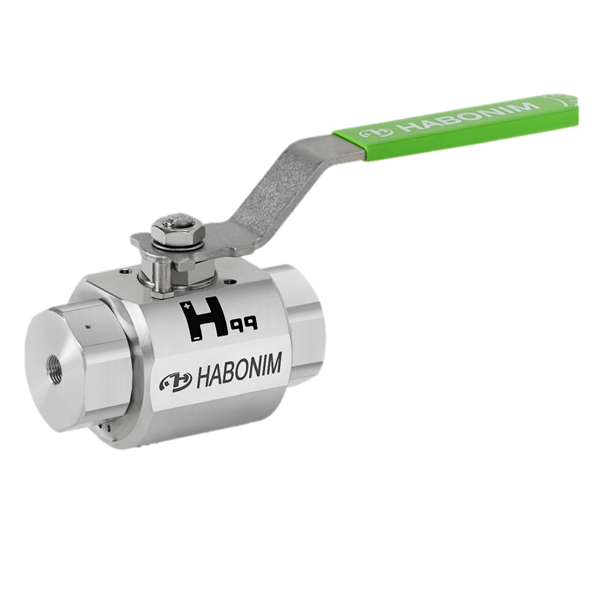

700/1034 bar (10,000/15,000 psi) 3 pieces. High Pressure Cone & Thread / Threaded / Weld end connections. Double body sealing. High cycle fugitive emission fire-safe HermetiX stem seal. Actuator ready with ISO plate

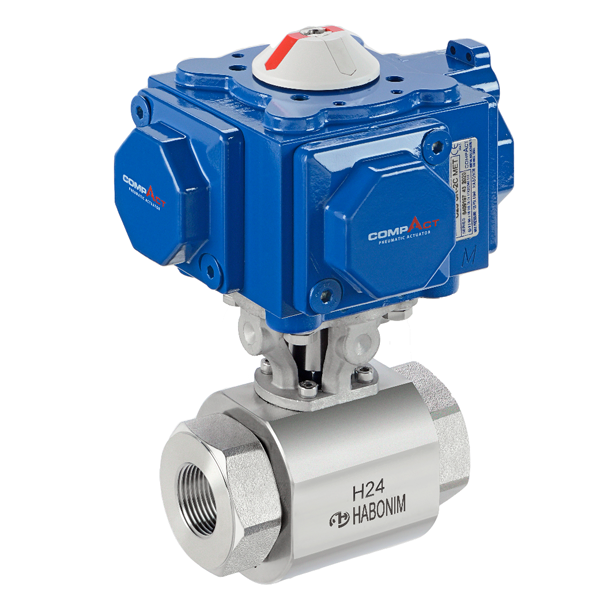

PN550 (8,000PSI) Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body instrumentation valve. Rated to 550 bar / 8,000psi. Actuator ready with ISO plate.

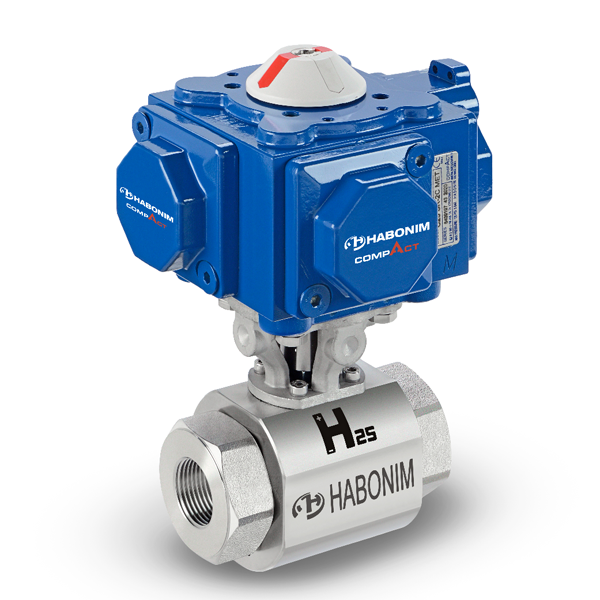

PN500 (7,250 psi) Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body instrumentation valve. Rated to 550 bar / 8,000psi. Actuator ready with ISO plate.
